Optimizing your streaming bandwidth with GstNetBalancer

Updated: Oct 5

This blog shows a real-life example of optimizing your streaming bandwidth requirements using GstNetBalancer, achieving a bandwidth reduction of around 30 times.


Bandwidth requirements for network streaming are a vital part of most multimedia applications, and it plays a critical role in wireless streaming applications such as wifi or radio links. For most wireless streaming applications, going beyond the limited bandwidth causes artifacts in the video content such as green and blocky regions or ghosting effects like the ones shown in the video in Figure 1.


Figure 1. Video artifacts caused by bandwidth issues on video streaming. Left video shows the original video . Right video shows the received video with artifacts due to the bandwidth limitation.


When the wireless link is known to support the video streaming requirements, then these artifacts are typically caused by an incorrect distribution of the data packets when streamed over the link. This type of problem is what GstNetBalancer has been developed for.


In order to demonstrate the usage of GstNetBalancer to optimize a network stream, consider the following case. Suppose you have a 1280x720 video, encoded in H264 and running at 30fps. Also, consider the streaming used MPEG-TS as the streaming protocol. The following sample pipeline can be used to replicate this scenario:



HOST_IP=192.168.1.10
PORT=3000
gst-launch-1.0 videotestsrc is-live=true ! 'video/x-raw,width=1280,height=720,framerate=30/1' ! queue ! x264enc key-int-max=30 bitrate=10000 ! queue ! mpegtsmux alignment=7 ! udpsink port=$PORT host=$HOST_IP -v

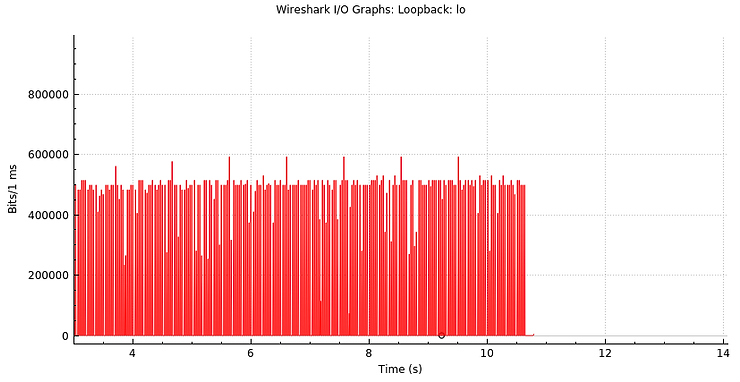

If we take a look at the network usage graph, it looks like figure 2. Note that the peaks of the transmission graph reach about 600000 bits/ms which translates to about 600Mbps. This bandwidth requirement is notoriously wrong and beyond any common wireless network. Moreover, when reaching a limited network, packets are going to be dropped and the artifacts will become visible at the reception side.



Figure 2. Bandwidth curve for an unoptimized pipeline. Video is 720p30 encoded in H264 and streamed using MPEG-TS


If we take a closer look at the graph, it will look like figure 3. Note that instead of sending the data packets distributed along the 33ms window (for a 30fps video), the packets are being sent as fast as possible, causing the transmission peak.


Figure 3. Zoom to bandwidth cure for an unoptimized streaming pipeline. Note how all packets are sent as fast as possible instead of using all the frame rate window.


In this blog, we are going to learn how to distribute the data packets along the frame rate window using GstNetBalancer. This will allow us to flat the bandwidth curve and reduce the bandwidth requirements.


First, let's start with a brief description of how GstNetBalancer works and what its properties mean. For this, let's use the bandwidth curve shown in figure 4. The figure shows a 1-second window of a network streaming seen from the GstNetBalancer perspective. The light blue blocks represent 16 different network packets that need to be sent over the network.


Figure 4. Sample bandwidth curve showing GstNetBalancer properties.


GstNetBalancer uses 3 main properties to distribute the data over the network bandwidth:


  1. Bandwidth: The bandwidth property allows to define the target bandwidth to use in kbps. It will avoid sending more data packets than those allowed by the defined bandwidth.

  2. Distribution factor: The distribution-factor property determines the rate, within a second, that we will be looking for sending data packets. That is, if we define distribution-factor to 4, it will look like figure 4, having four different transfer intervals where it will try to send data packets within the 1-second window, respecting the defined bandwidth limit. Typically, you want to set the distribution factor large enough to make sure you will have more than one transfer interval within the frame rate window, that is: distribution-factor = intervals-per-frame * frame-rate So, if we want to have 5 intervals per frame, at 30fps frame rate, we would set the distribution-factor to 150.

  3. Minimum delay: the min-delay property, is a fine tune property that complements the distribution factor. Once the distribution-factor is defined, you can define a minimum delay between packets to be sent within each transfer interval. Figure 4 shows an example of this, the 8 packets on the left are set to use a min-delay of zero, so they are split among the transfer intervals and sent at once. On the other hand, the 8 packets on the right are set to use a non-zero min-delay value, so they are sent separately within the transfer interval.


Now that we have explained a little bit about the properties of the GstNetBalancer plugin, the next step is to optimize our toy example to reduce the bandwidth required to some sort of acceptable value. First, remember that our video is an H264 720p@30 stream, so the video is compressed and each frame ends up with a different size. That said, it is not possible to calculate the exact required bandwidth but we can easily estimate it. We can use the following pipeline to look at the size of each encoded frame:


gst-launch-1.0 videotestsrc is-live=true ! 'video/x-raw,width=1280,height=720,framerate=30/1' ! queue ! x264enc key-int-max=30 bitrate=10000 ! queue ! identity silent=false ! fakesink -v

It will result in an output like the following:


/GstPipeline:pipeline0/GstIdentity:identity0: last-message = chain   ******* (identity0:sink) (42170 bytes, dts: 1000:00:06.566666666, pts: 1000:00:06.633333333, duration: 0:00:00.033333333, offset: -1, offset_end: -1, flags: 00002000 delta-unit , meta: none) 0x7f1fe00597e0
/GstPipeline:pipeline0/GstIdentity:identity0: last-message = chain   ******* (identity0:sink) (42296 bytes, dts: 1000:00:06.600000000, pts: 1000:00:06.666666666, duration: 0:00:00.033333334, offset: -1, offset_end: -1, flags: 00002000 delta-unit , meta: none) 0x7f1fe003ad80
/GstPipeline:pipeline0/GstIdentity:identity0: last-message = chain   ******* (identity0:sink) (41148 bytes, dts: 1000:00:06.633333333, pts: 1000:00:06.700000000, duration: 0:00:00.033333333, offset: -1, offset_end: -1, flags: 00002000 delta-unit , meta: none) 0x7f1fe002c120
/GstPipeline:pipeline0/GstIdentity:identity0: last-message = chain   ******* (identity0:sink) (41121 bytes, dts: 1000:00:06.666666666, pts: 1000:00:06.733333333, duration: 0:00:00.033333333, offset: -1, offset_end: -1, flags: 00002000 delta-unit , meta: none) 0x7f1fe000ec60
/GstPipeline:pipeline0/GstIdentity:identity0: last-message = chain   ******* (identity0:sink) (48494 bytes, dts: 1000:00:06.700000000, pts: 1000:00:06.766666666, duration: 0:00:00.033333334, offset: -1, offset_end: -1, flags: 00000000 , meta: none) 0x7f1fe

Look at the highlighted part of the log, it shows the value of one keyframe in the streaming. For this specific keyframe, its size is 48494 bytes. Since we could use a more reliable way to estimate the size of the keyframes, we can just round up the sample and say we might be expecting keyframes around 50000 bytes - hoping most of the frames fall within this limit. We will later see that this approximation leads us to close results and just some minimum tunning will be required to achieve the desired result. With all of this, let’s define the target bandwidth as:



bandwidth = bytes-per-frame * bits-per-byte * frames-per-second
          = 50000 * 8 * 30 = 12Mpbs

This way, we have already found the value for our first property bandwidth=12000 (remember it is defined on kbps units).


Our next property is the distribution-factor. In this case, we select it so that we ensure at least 10 transfer intervals within a frame window (33ms). Given we are running at 30fps we will need:


distribution-factor = number-intervals-per-frame * frame-rate
                    = 10 * 30 = 300

There is not a specific rule behind our selection for the distribution-factor, we only want to make sure we have several opportunities to transfer packets within a frame interval.


At this point, we can make a quick checkpoint and see what our bandwidth curve looks like. For this, we need to add the netbalancer element to our pipeline, just right before sending the packets to the network (since this is what we want to control). The following pipeline adds the netbalancer element with the settings calculated so far:


gst-launch-1.0 videotestsrc is-live=true ! 'video/x-raw,width=1280,height=720,framerate=30/1' ! queue ! x264enc key-int-max=30 bitrate=10000 ! queue ! mpegtsmux alignment=7 ! netbalancer bandwidth=12000 distribution-factor=300  ! udpsink port=3000 host=127.0.0.1 -v

With this initial setup, we can get the bandwidth curves shown in figure 5.



Figure 5. Bandwidth curve using netbalancer with bandwidth=12000 and distribution-factor=300.

Note that with just setting the proper bandwidth and distribution-factor, it has been possible to decrease the peak bandwidth from ~600Mbps to ~80Mbps, representing a reduction of 7.5 times. However, despite we have been able to decrease the required bandwidth for the video transmission, we are still running too high for normal wireless links (~20Mbps). If we look closer to the bandwidth curve (figure 6), we will notice that there is still some room between each data transfer to distribute more the packets. Our next step configuring the min-delay property will allow us to get closer to the estimated required bandwidth of 12Mpbs.


Figure 6. Looking closer at the bandwidth curve, it is possible to note that there is still too much lost time within each transfer interval, and we can use this time to distribute the packets better.

In order to select the proper min-delay for our case, we need to go a little bit deeper in the match and know the properties of our streaming configuration. First, since our target is 12Mpbs, we know this means a total transfer of 1.5MB/s. Considering a distribution-factor of 300 we can calculate the maximum amount of bytes to be transferred on each transfer interval:


bytes-per-interval = 1.5MB / 300 = 5000 bytes/interval


Additionally, we know that each transfer interval is performed on 3.3ms steps (1s / 300) and considering 1MTU ~ 1400bytes we can calculate the required min-delay as follows:


# MTUs per interval = 5000 / 1400 = 3.57 MTUs

min-delay = 3.3ms / 3.57 = 924us


Note that min-delay looks for distributing the packets to be sent over the network within the transfer interval, its value depends on the size of the data packets i.e. if we are using jumbo packets or 188-byte TS packets, then we need to do a new calculation.


Anyway, at this point, we have a very good estimate of our min-delay, and we just need to tune it a little bit to compensate for our estimations. Rounding it up to 1000us as shown in the pipeline below, provides the curve shown in figure 7. As it is possible to note, we have now reduced the required streaming bandwidth to about 15Mbps, which represents a reduction of about 40 times from our starting bandwidth (600Mbps).


gst-launch-1.0 videotestsrc is-live=true ! 'video/x-raw,width=1280,height=720,framerate=30/1' ! queue ! x264enc key-int-max=30 bitrate=10000 ! queue ! mpegtsmux alignment=7 ! netbalancer bandwidth=12000 distribution-factor=300 min-delay=1000 ! udpsink port=3000 host=127.0.0.1 -v


Figure 7. Optimized bandwidth curve using netbalancer.

Finally, figure 8 shows a zoomed version of the resulting bandwidth curve, note how the curve is almost flat with all packets distributed along the frame time.


Figure 8. Looking closer at the optimized curve, it is possible to note that all packets have been distributed along the frame interval, making good use of the network bandwidth.

This way, we have been able to demonstrate how GstNetBalancer can help to make correct use of your network bandwidth and optimize it at maximum, reducing the probability of packet loss and thus, reducing the artifacts when streaming video.
